Mobile Concrete Batching Plant
Ningdu Xingye Machinery Manufacturing Co., Ltd. has focused on top quality mixing equipment products and parts for more than 15 years in China. Today, Ningdu Xingye Machinery Manufacturing Co., Ltd. is one of the top producers of high-quality mixing equipment products and accessories, including: mixing plants, mixing machines, batching machines, cement silos, screw conveyors and stabilized soil mixing plants.
Why Choose Us
Our Factory
Ningdu Xingye Machinery Manufacturing Co., Ltd. has 15 years of professional production experience. The 20,000 square meter factory is located in the Ningdu County Industrial Park, Ganzhou City, Jiangxi Province. There are more than 100 professional production workers.
Quality Assurance
Our company is directly related to the quality of the products we offer. They meet the highest quality requirements as stipulated in ISO9001, ISO14000:14001 SGS guidelines and our stringent quality control system.Won the patent of CE\CNAS-QMS
Production Equipment
Our production equipment includes Laser cutting machine, bending machine, CNC machine tools, welding machine, crane, Painting line.
Production Market
We have customers from both domestic market and oversea market. Our main sales markets include: Africa 35.68%. South America 19.12%. North America 15.38%. Middle East 10.98% .
Advantages of Mobile Concrete Batching Plant
Increased Production Capacity
While mobile plants are typically compact and portable, they do not compromise production capacity. This augmented capacity empowers small businesses to take on more substantial projects and meet the diverse demands of their clients, ultimately facilitating the expansion of their business operations.
Versatility
Mobile plants stand out as versatile machines capable of handling various types of concrete, including ready-mix, precast, and speciality mixes. Their flexibility empowers you to deploy them on different projects, a significant advantage for small businesses looking to diversify their services and expand their project portfolio.
Improved Efficiency
Efficiency stands as the cornerstone of success in any construction project, and mobile concrete batch plants have the potential to enhance it significantly. They offer rapid and straightforward setup, reducing downtime and facilitating swift concrete production.
Precision
Precision in concrete production is non-negotiable when ensuring the structural integrity of buildings and infrastructure. Mobile concrete batching plants offer precise control over the mix design, enabling the accurate batching of materials.
90m³ Portable Concrete Mixing Plant
90m³ portable concrete mixing plant batching machine has 4 bins, a batching capacity of 2400L, a cement silo specification of 4x100t, a powder silo capacity, a cement weighing range and accuracy (0~1500) ±1%kg, an admixture weighing range and accuracy (0~50) ±1%kg.
60m³ Concrete Mixing Plant
60m³ concrete mixing plant alias: HZS60 mobile mixing plant, HZS60 engineering mixing plant, HZS60 concrete plant, 60m³ engineering universal concrete batching plant, 60m³concrete batching plant, is a fully automatic concrete mixing plant equipment composed of batching device.

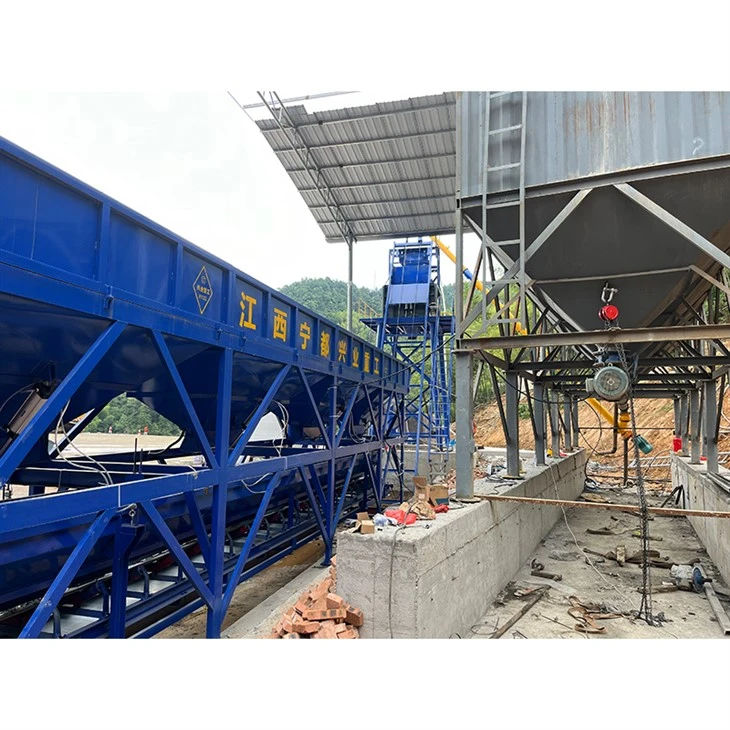

HZS60 Concrete Mixing Plant
HZS60 concrete mixing plant adopts JS1000 twin shaft concrete mixer forced mixing host, which has good mixing homogeneity and stable and reliable operation.The mixing system consists of motor, reducer, transmission device, mixing device, mixing cylinder, oil supply system, etc.
Free Basis 60m³ Stationary Concrete Batching Plant
HZS series is a new kind of compulsory volumetric concrete mixing equipment . It includes JS concrete mixer, PLD matching machine,cement silo,conveying system and control system, accumulative system and weighing system.
25m/H Ready Mix Concrete Plant
Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc.
Mobile Mixing Plant
The mobile mixing plant is a new type of mobile concrete mixing plant that integrates batching system, mixing system, conveying system and weighing system.
|
Types |
Belt Type |
||
|
Model |
AJY-25 |
AJY-35 |
AJY-50 |
|
Theoretical Productivity (m³/h) |
25 |
35 |
50 |
|
Mixer Model (Mixer Output L) |
JS500 |
JS750 |
JS1000 |
|
Mixer Power (kW) |
18.5 |
30 |
2×18.5 |
|
Mixing Cycle Period (s) |
72 |
72 |
72 |
|
Rated Input Volume (Model of Batching Machine L) |
800 |
1200 |
1600 |
|
Max.Aggregate Size (mm) |
Φ60 |
Φ60 |
Φ60 |
|
Standard Aggregate Bin Capacity (m³) |
2×3 |
2×5 |
2×5 |
|
Powder Storage Silo (ton) (Optional) |
1×50 |
2×50 |
1×100 |
|
Max. Discharging Height (m) |
3.8 |
3.8 |
4.1 |
|
Weighing Range & Accuracy of Aggregate (kg) |
（300~1500）±2% |
（300~1500）±2% |
（300~3000）±2% |
|
Weighing Range & Accuracy of Cement (kg) |
（100~300）±1% |
（100~300）±1% |
（250~900）±1% |
|
Weighing Range & Accuracy of Water (kg) |
（60~150）±1% |
（60~150）±1% |
（80~300）±1% |
|
Weighing Range & Accuracy of Additive (kg) |
/ |
（8~20）±1% |
（8~20）±1% |
|
Overall Weight (ton) |
≈15 |
≈22 |
≈26 |
|
Installation Power (kW) |
≈61 |
≈73 |
≈92 |
|
Power Supply |
380V/220V/415/440V, 50/60HZ, 3Phase |
||
Uses for Mobile Concrete Batching Plant
Remote locations: Mobile concrete batching plants are a great solution for remote locations where transporting concrete becomes extremely difficult or impossible. These plants can be easily transported to the site and produce high-quality concrete on-site, eliminating transportation costs.
Environmental projects: Mobile concrete batching plants are ideal for environmental projects, such as wetlands restoration and shoreline protection. These plants can produce specialized blends of concrete that meet the specific needs of these projects, such as low permeability and high durability.
Urgent repair work: Mobile concrete batching plants are perfect for urgent repair work, such as road and bridge repairs. They can produce concrete quickly and efficiently, reducing downtime and minimizing disruption to traffic.
Other Services
Minimum order quantity
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however, we can send you catalog, warmly welcome you to come to visit our company.
Delivery time of your machine
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
Machine be customized as our need
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available.
Shipment
By sea. If you have your own freight forwarder, we can also transport to the designated port for you.
Packaging And Shipping
