Forced Concrete Mixer

Name: China Forced Concrete Mixer Manufacturers Suppliers Factory - Customized Service - Xingye Machinery
Brand: Xingye
SKU: 244081245

Items: Forced Concrete Mixer
Model: Js500, Js750, Js1000, Js1500, Js2000, Js3000
Theoretical Capacity: 25m³/h, 50m³/h, 60m³/h, 90m³/h, 120m³/h, 180m³/h
Application: Roads, Railways, Bridges Construction

Send Inquiry

Product Details

Our product

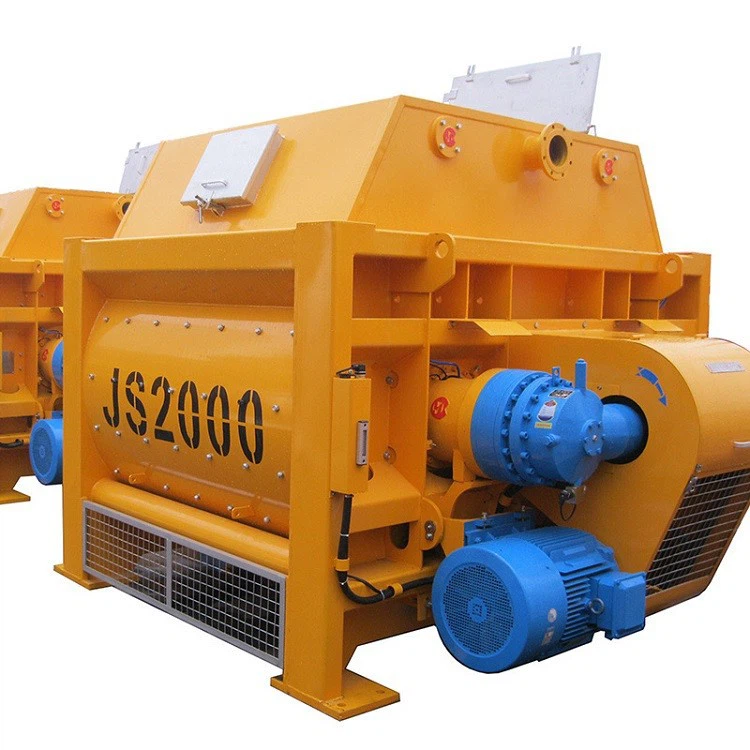

Large Forced Mixer Cement Double Axle Concrete Mixer

Portable Cement Mixer

Certifications

certification of 180m Stationary Concrete Plant

Our Company

Jiangxi Xingye Machinery Heavy Industry Co., Ltd. is a specialized production of concrete mixing equipment manufacturers, has 20 years of production experience, our production of mixers sold all over the world, for many well-known enterprises processing, with advanced production technology and perfect after-sales service, welcome buyers around the world to order products.

Parking And Deliver

parking

Delivery

Sales Case

Concrete Mixer sales case

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.

Hot Tags: forced concrete mixer, China forced concrete mixer manufacturers, suppliers, factory, single cylinder hydraulic cone crusher, mobile batching machine, stabilized soil mixing plant, drum concrete mixer, heavy duty jaw crusher, stone cone crusher machine

The utility model relocates the side arm in the rotation direction of the overall mixing arm layout, making it lag behind the end arm of the mixing arm group on the same side, so that in actual work, the working resistance of the side arm is small, there is no cutting friction between the side arm and the mixing cylinder, so that the durability of the side arm is improved, and the driving force required by the mixing shaft is also reduced, so that a low-power motor can be assembled. The manufacturing cost is reduced, and the energy consumption is reduced accordingly.

Model No.		JS500	JS750	JS1000	JS1500	JS2000
Output capacity		500L	750L	1000L	1500L	2000L
Input capacity		800L	1200L	1600L	2400L	3200L
Productivity		≥25m³/h	≥37.5m³/h	≥50m³/h	≥75m³/h	≥100m³/h
Aggregate Maximum Particle Size (Pebble/Gravel) mm		80/60	80/60	80/60	80/60	80/60
Stirring blade	Rotating speed	35r/m	31r/m	25.5r/m	25.5r/m	23r/m
Stirring blade	Quantity	2×7	2×7	2×8	2×10	2×10
Stirring motor	Model No.	Y180M-4	Y200L-4	Y225S-4	Y225M-4	Y280S-4
Stirring motor	Productivity	18.5KW	30KW	37KW	45KW	75KW
Hoist motor	Model No.	YEZ132S-4-B5	YEZ132M-4-B5	YEZ160S-4	YEZ180L-4	YEJ180L-4
Hoist motor	Productivity	5.5KW	7.5KW	11KW	18.5KW	22KW
Water pump motor	Model No.	50DWB20-8A	65DWB35-5	KQW6	KQW65	CK65/20L
Water pump motor	Productivity	750W	1.1KW	3KW	3KW	4KW
Hopper lifting speed		18m/min	18m/min	21.9m/min	23m/min	26.8m/min
Dimensions (length x width x height)	Shipping status	3050×2300×2680mm	3650×2600×2890mm	4640×2250×2250mm	5058×2250×2440mm	5860×2250×2735mm
Dimensions (length x width x height)	Working status	4461×3050×5225mm	4951×3650×6225mm	8765×3436×9540mm	9645×3436×9700mm	10720×3870×10726mm
Total Weight		4000kg	5500kg	8700kg	11130kg	15000kg
Discharge height		1500mm	1600mm	2700mm	3800mm	3800mm
