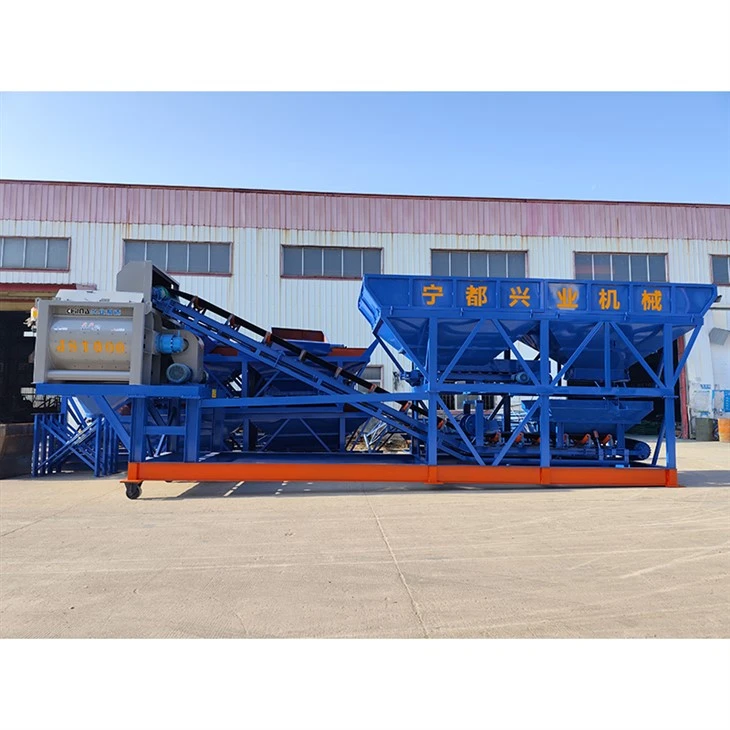

50m³ Concrete Mixing Plant
Mixer model: JS1000
Batch machine model: PLD1600
Production capacity: 50m³/h
Application areas: Applicable to large-scale projects such as roads, airports, ports, hydropower, and the production of large-volume concrete such as prefabricated components and commercial concrete, and used in various engineering construction.
Product Details
Our product
50m³ Concrete Mixing Plant is a set of automatic concrete mixing equipment consisting of feeding, batching, mixing, electrical control and steel structure components.
Certifications
CE QMS
Our Company
The total production plant area is 20,000 square meters.
Packaging And Shipping
Our Advantages
HZS50 concrete batching plant is a forced and efficient equipment that can produce various types of concrete such as plastic and dry hard concrete. It has high production efficiency and is widely used in large and medium-sized construction, road and bridge projects, and prefabrication plants for producing concrete products. It is an ideal equipment for producing commercial concrete.
The main machine of the HZS50 concrete mixing station mixing system adopts JS series double-horizontal shaft forced mixer, which has good homogeneity of mixed concrete, short mixing time, long life of wearing parts, and convenient operation and maintenance. It adopts electronic weighing, microcomputer control, digital display and other control technologies with new design ideas. The electronic weighing has a buffer device and automatic compensation function, and the measurement accuracy is high.
The sand and gravel feeding system of 50m³ Concrete Mixing Plant adopts flat belt or herringbone belt feeding, and is equipped with an inspection walkway. It is an ideal choice for the majority of construction units to produce high-quality concrete.
FAQ
Q: What type of concrete batching plant is needed to produce about 40 cubic meters of concrete per hour? HZS50?
Hot Tags: 50m³ concrete mixing plant, China 50m³ concrete mixing plant manufacturers, suppliers, factory, mobile concrete mixing plant, js500 concrete mixer, jaw crusher, portable jaw rock crusher, vertical shaft impact crusher, horizontal steel cement silo
The theoretical productivity of HZS50 concrete mixing plant is 50m³/h. Based on 8 working hours per day and 300 working days per year, the annual output of concrete is about 120,000 cubic meters.
|
Name |
HZS50 Concrete Mixing Plant |
|
Theoretical Capacity |
50 m3/h |
|
Model of Mixer |
JS1000 |
|
Mixing motor power |
2*18.5kw |
|
Mixing Cycle Time |
60s |
|
Volume of Mixer |
1000L |
|
Discharging Capacity |
1000L |
|
Charging Capacity |
1600L |
|
Standard Discharging Height |
1.5m |
|
Number of Species of Aggregate |
3-4 |
|
Maximum Aggregate Size |
≤80mm |
|
Cement/Powder Silo Capacity(set) |
3×100T |
